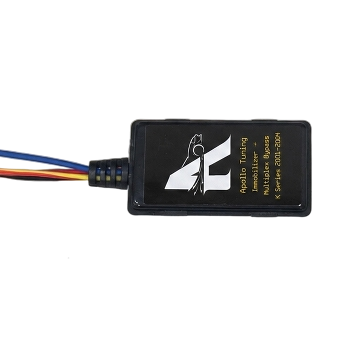

Honda K-Series 2001-2005 Immobilizer Bypass Delete

Compatible with ECU Codes: PLM, PLR, PND, PNF, PRA, PRB, and PPA (most K series 2001-2004, some 2005).  K20 & K24.

Runs stock ECUs without any tuner / Hondata.

Also disables Multiplex Code P0600 - no CELs on your K swap

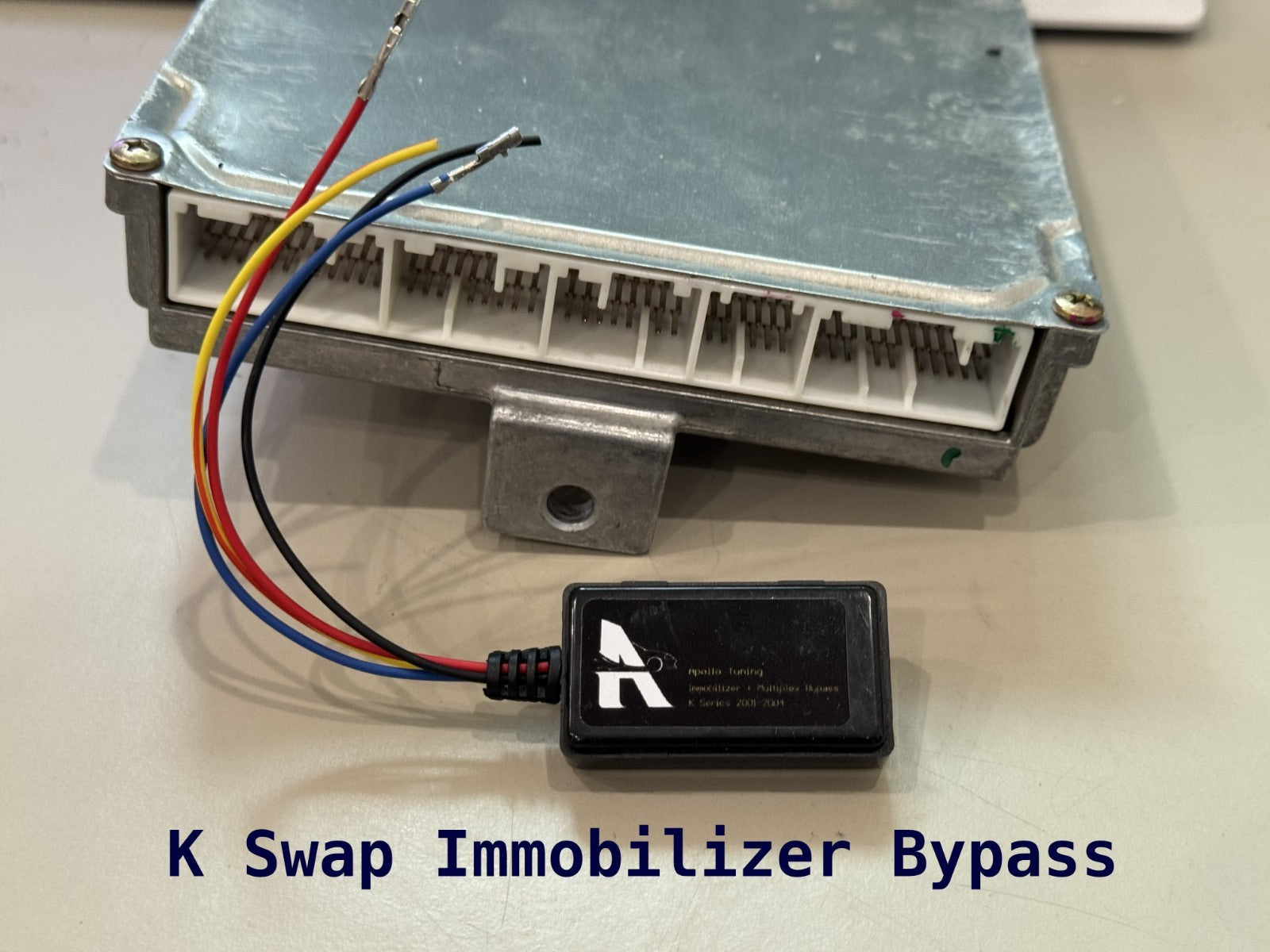

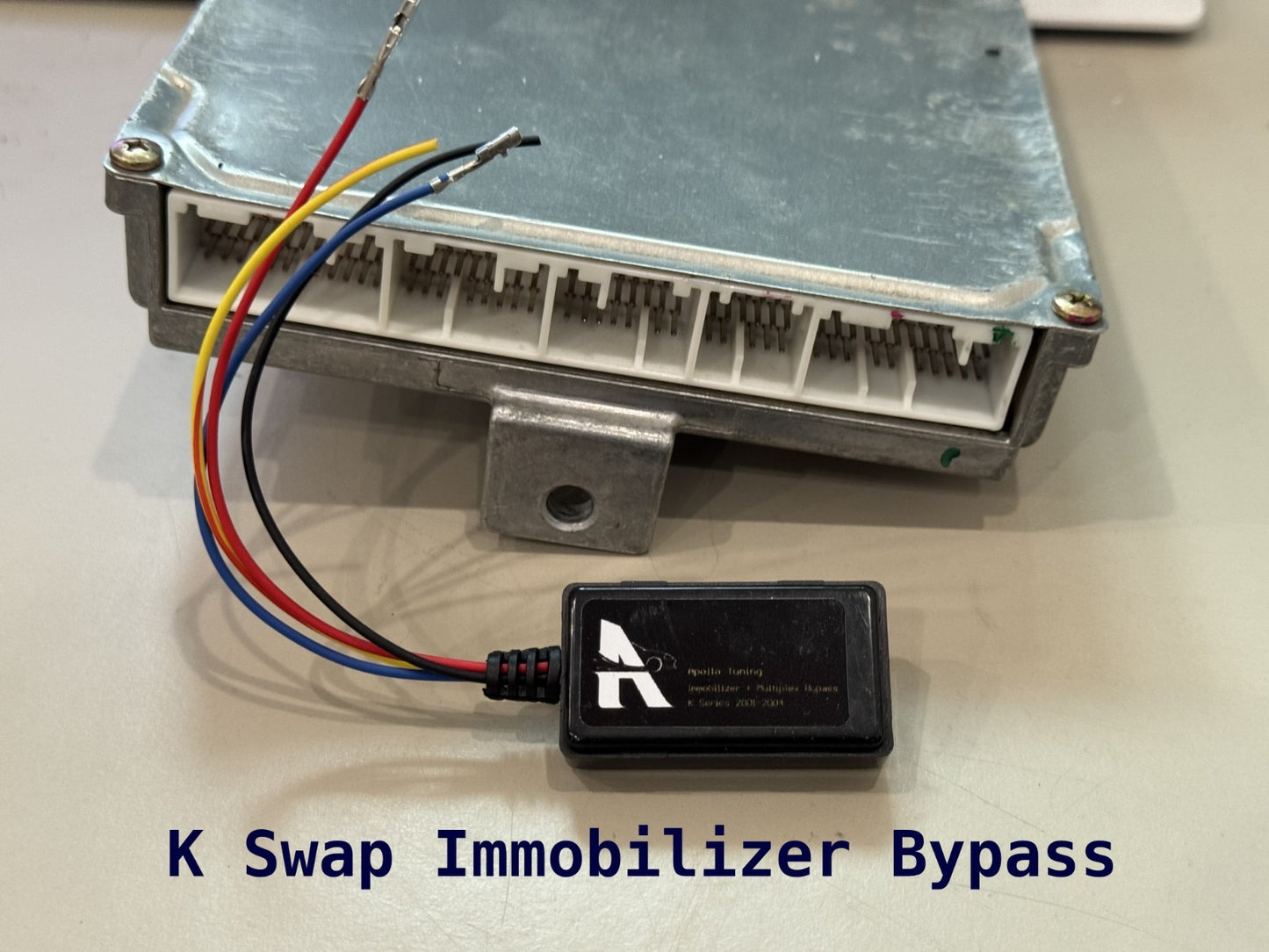

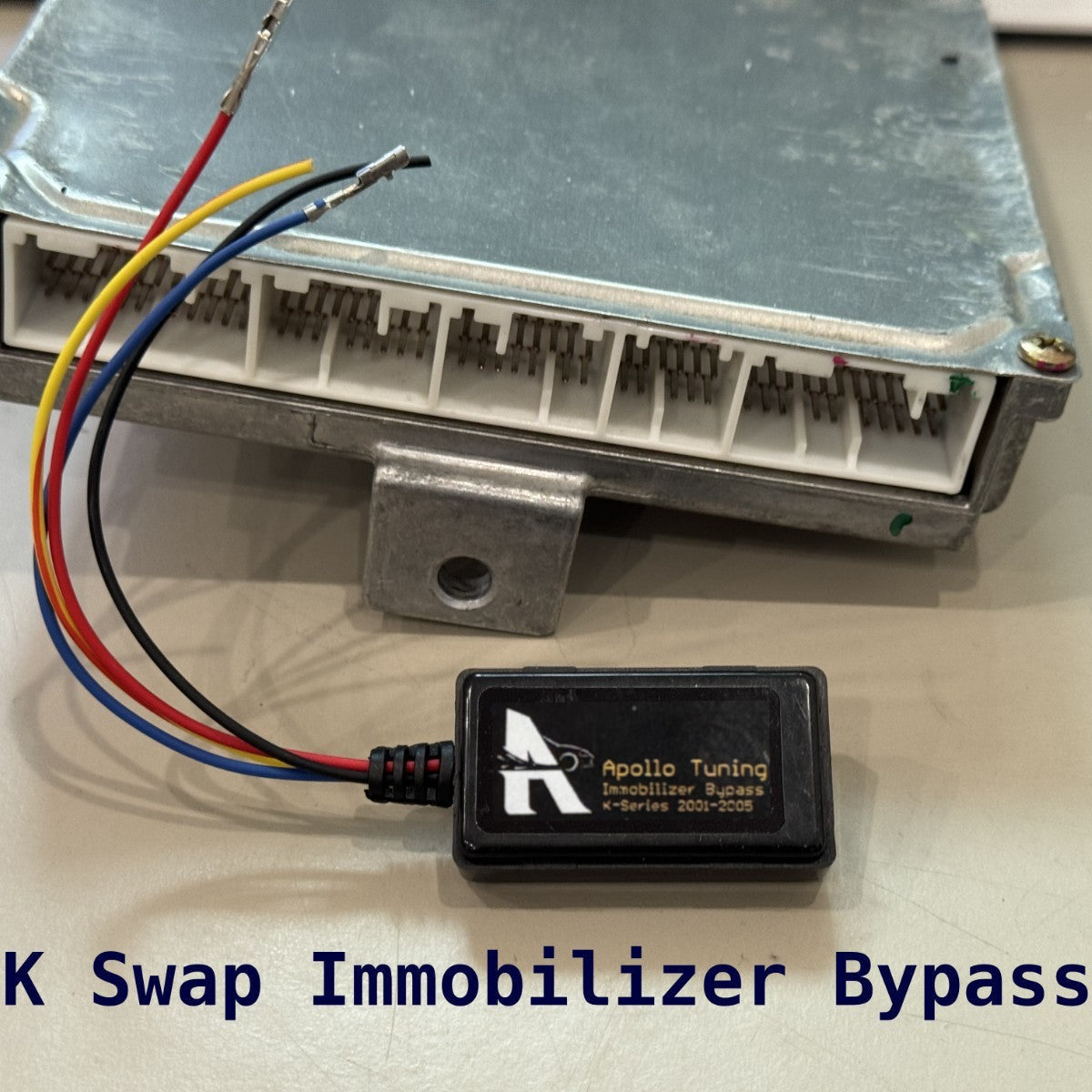

This is a full bypass of factory immobilizer.  It can also be used on factory Honda/Acura vehicles that have a lost key or have some broken part of the immobilizer system.  For use in a factory Honda/Acura, do not connect the blue wire (multiplex control unit bypass, Pin 24).  Only connect the red wire (immobilizer bypass).  You will need to remove the original IMOCD ECU wire at Pin 27 and then install ours.

For replacement ECU pins the part number is 316836-1.

Installation:

Compare to:

Doctronic K-SwapBox

K-Tuned

Hybrid Racing
