Projects + Upcoming Products

The following is a portfolio of projects made for internal use and for upcoming products for sale.

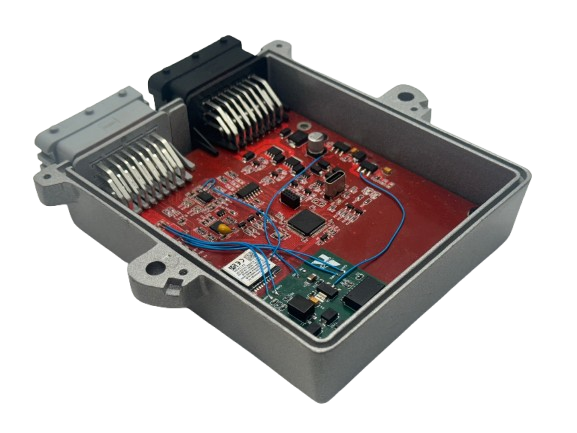

Advanced 4-Speed Transmission Computer

Designed for GM 4L80e/4L85e. Standahole controller with CANbus and optional external sensor inputs (such as MAP and TPS).

  • Works with Mode 1 OBD2 and rusEFI via CANbus with 3000V galvanic isolation.

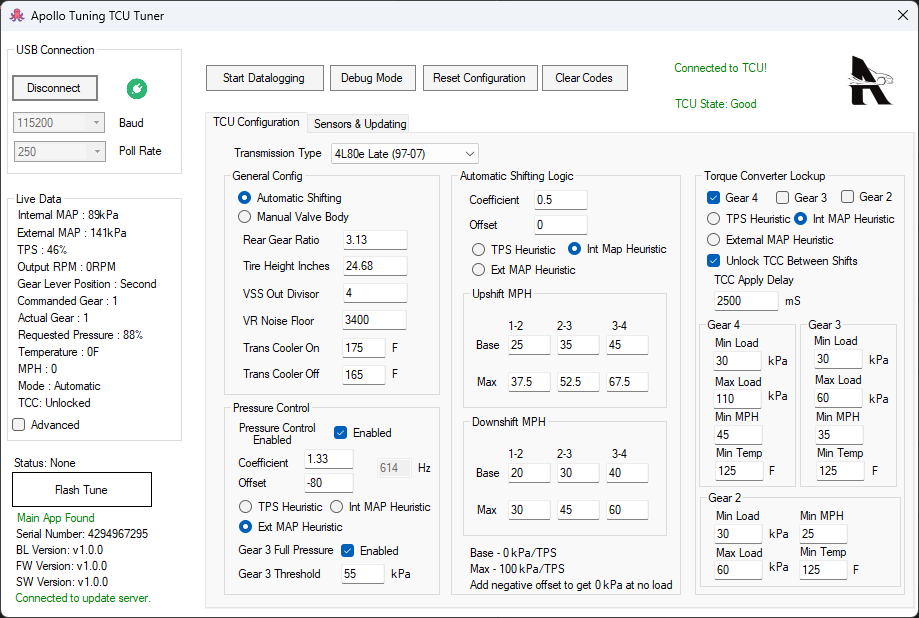

  • Adjust shift and TCC lockup tables.
  • Output programmable speedo signal.
  • Datalog TCC slip, trans slip, fluid temp and more.
  • Trigger reverse lights and external trans cooler fan. Paddle shifter support.

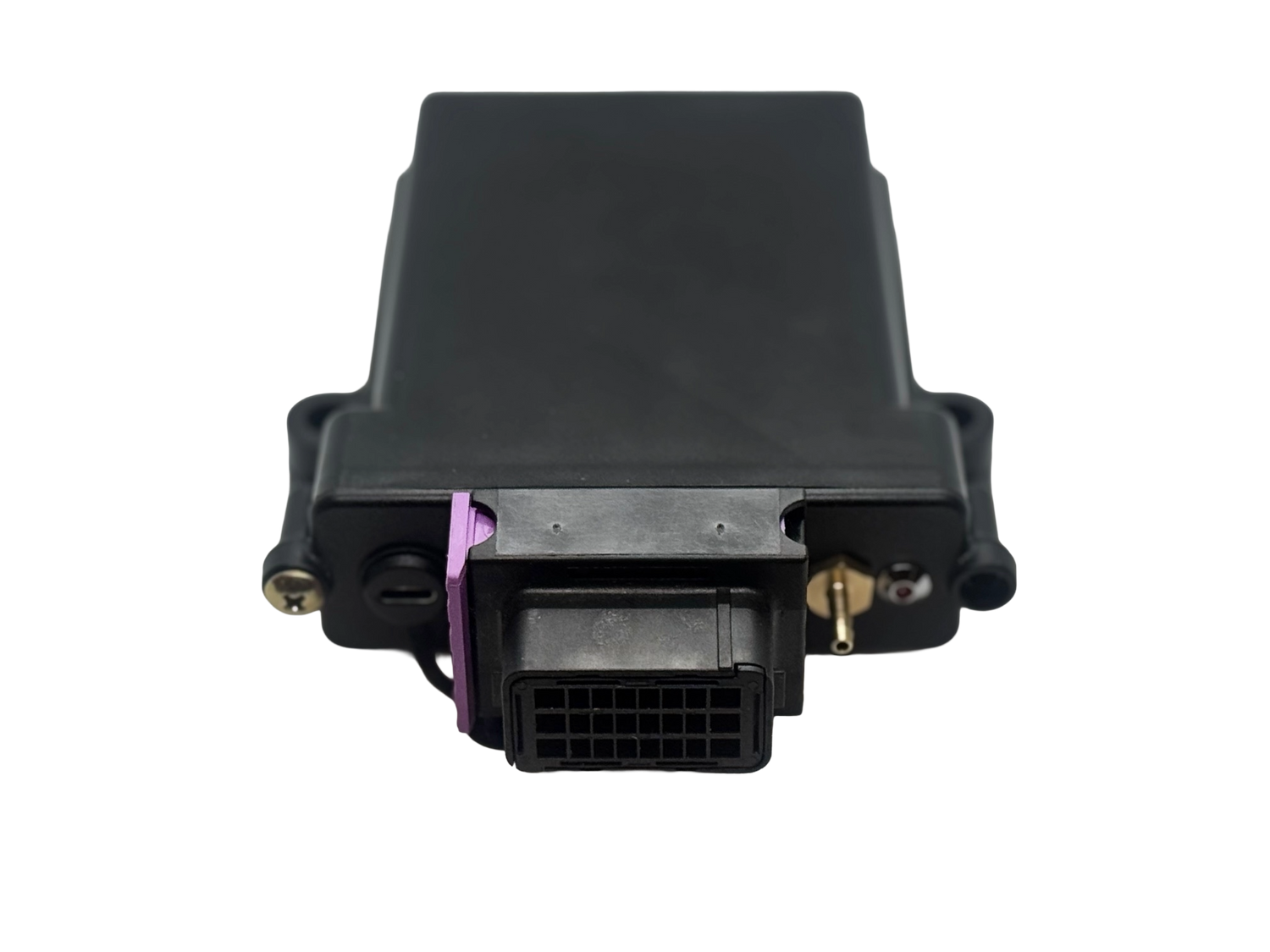

Basic 4-Speed Transmission Computer

Designed for GM 4L80e/4L85e. Standalone controller with a digital vacuum modulator - no extra sensors needed!

  • Works with carburators and fuel injection with optional kickdown switch for true vintage operation.
  • Connects to your laptop with a very simple tuning interface.
  • Has pressure control, automatic shifting or manual valve body, and torque converter lockup. Outputs a signal for a digital speedometer.
  • Has two multifunction switches - use them to switch between auto and manual stift, goto full line pressure, or set other modes of operation.

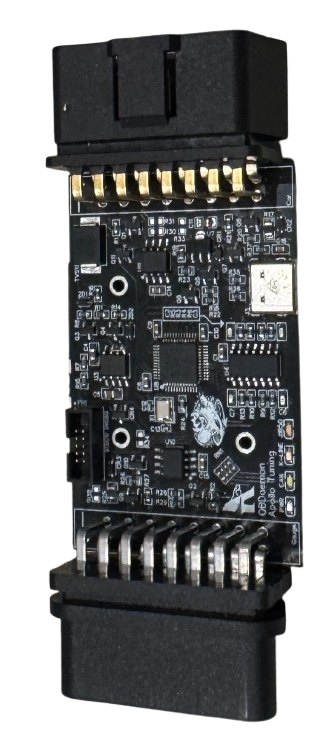

OBDaemon OBD Translator

Universal OBD2 Bridge, development files available upon request

Currently supported:

  • CAN to ISO9141 (K-Line)
  • ISO9141 (K-Line) to CAN
  • CAN to J1850 VPW
  • J1850 VPW to CAN
  • OBD message injection
  • OBD gateway (remove or mutate/override messages)
  • Subaru SSM K-Line to CAN
  • Run ScanGauge, other CANbus gauges on older OBD vehicles
  • Supports some OBD1 vehicles such as 92-95 Civic
  • Standby/sleep mode

In Progress:

  • KWP2000 to CAN
  • CAN to KWP2000
  • J1850 PWM support
  • FDCAN with UDS

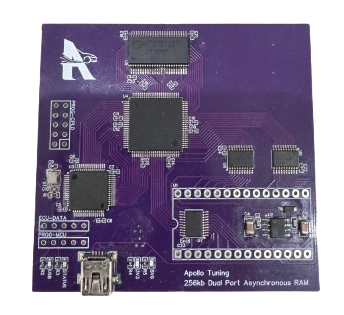

Universal 256kB ROM Emulator

Similar to Hondata and other emulators found on OBD1 Hondas, but features a universal tool to upload any BIN to the target device. Emulates a 256kilobit ROM. Allows live changes without halting the target device. It is useful for doing live or fast updates to arcade machines, engine computers, and control systems.

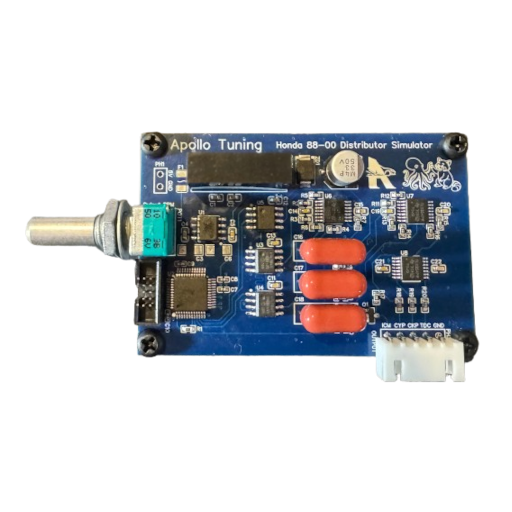

Honda Distributor Simulator

The only Honda 88-00 distributor simulator that accurately replicates the variable reluctance sensors. Viewed on an oscilloscope will show an accurate replication of the sine waves with varying amplitude that come from a real Honda distributor. This tool has been critical in our development of Honda products.

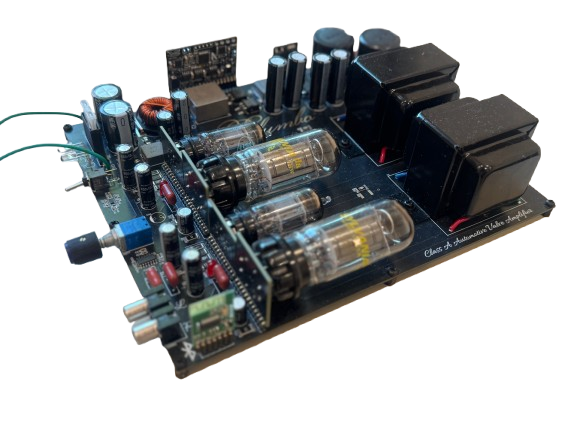

Automotive Valve Amplifier

  • JFET unity gain + bandpass filter input stage with ultra-low-noise reference voltage.
  • 12AX7 preamp stage, 6V6GT power output stage.
  • 4 and 8 ohm outputs.
  • Fully digitally controlled SMPS, generating B+ and tube heater bias.
  • High-quality Panasonic caps and low noise thin film resistors.
  • Optional daughtercard for Bluetooth connectivity.
